The signed and unsigned types in VHDL are bit vectors, just like the std_logic_vector type. The difference is that while the std_logic_vector is great for implementing data buses, it’s useless for performing arithmetic operations.

If you try to add any number to a std_logic_vector type, ModelSim will produce the compilation error: No feasible entries for infix operator “+”. This is because the compiler doesn’t know how to interpret this collection of bits that the vector is.

This blog post is part of the Basic VHDL Tutorials series.

We must declare our vector as signed or unsigned for the compiler to treat it as a number.

The the syntax for declaring signed and unsigned signals is:
signal <name> : signed(<N-bits> downto 0) := <initial_value>;
signal <name> : unsigned(<N-bits> downto 0) := <initial_value>;

Just like with std_logic_vector, the ranges can be to or downto any range. But declaring signals with other ranges than downto 0 is so uncommon, that spending any more time on the subject would only serve to confuse us. The initial value is optional, by default it’s 'U' for all bits.

We have already been using the integer type for arithmetic operations in previous tutorials. So why do we need the signed and unsigned types? For most, digital designers like to have more control of how many bits a signal actually uses.

Also, signed and unsigned values wrap around, while the simulator will throw a run-time error if an integer is incremented beyond bounds. Finally, signed and unsigned can have other values like 'U' and 'X', while integers can only have number values. These meta-values can help us discovering errors in our design.


In this video we learn how signed and unsigned signals behave alike, and how they behave differently:

The final code we created in this tutorial:

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity T12_SignedUnsignedTb is
end entity;

architecture sim of T12_SignedUnsignedTb is

    signal UnsCnt : unsigned(7 downto 0) := (others => '0');
    signal SigCnt : signed(7 downto 0)   := (others => '0');
    signal Uns4   : unsigned(3 downto 0) := "1000";
    signal Sig4   : signed(3 downto 0)   := "1000";
    signal Uns8   : unsigned(7 downto 0) := (others => '0');
    signal Sig8   : signed(7 downto 0)   := (others => '0');


    process is

        wait for 10 ns;
        -- Wrapping counter
        UnsCnt <= UnsCnt + 1;
        SigCnt <= SigCnt + 1;
        -- Adding signals
        Uns8 <= Uns8 + Uns4;
        Sig8 <= Sig8 + Sig4;

    end process;
end architecture;

The waveform window in ModelSim, zoomed in on the interesting parts:

Need the ModelSim project files?

Let me send you a Zip with everything you need to get started in 30 seconds

How does it work?

Tested on Windows and Linux How it works

    Unsubscribe at any time


    The radix of all signals in the waveform are set to hexadecimal so that we can compare them equally.

    In the wrapping counter example, we see that the signed and unsigned signals behave exactly the same way. Both UnsCnt and SigCnt start at 0, and are incremented one-by-one up to FF. Hex FF (decimal 255) is the largest value our 8-bit signals can hold. Therefore, the next increment wraps both of them back to 0.

    We created the two 4-bit signals Uns4 and Sig4, and gave them both an initial value of “1000”. We can see from the waveform that they are both just hex 8 (binary 1000).

    The last two 8-bit signals we created were Uns8 and Sig8. We can see from the waveform that their initial values are 0, as one would expect. But from there, they behave differently! Apparently, signed and unsigned types made a difference when adding two signals of different lengths.

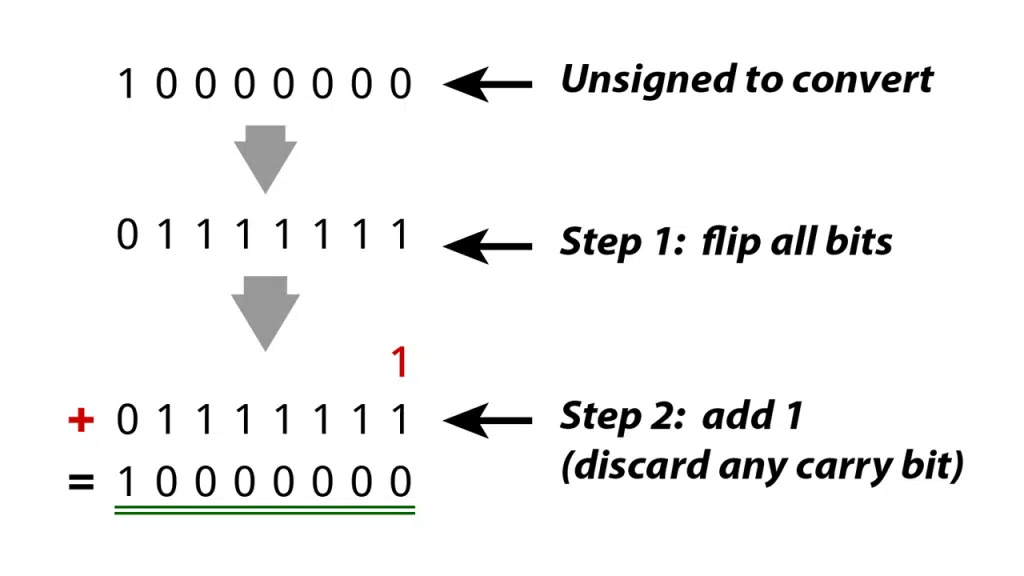

    This is because of something known as sign extension. Adding positive or negative numbers stored in vectors of equal length, is the same operation in digital logic. This is because of how two’s complement works. If the vectors are of different lengths, the shortest vector will have to be extended.

    The unsigned 4-bit binary number “1000” is decimal 8, while the signed 4-bit number “1000” is decimal -8. The “1” at the left-most place of the signed number indicates that this is a negative number. Therefore, the two 4-bit signals are sign extended differently by the compiler.

    This is a visualization of how sign extension creates the differing values for the Uns8 and Sig8 signals:

    Get exclusive access to exercises and answers!


    • Signals of signed and unsigned type are vectors that can be used in arithmetic operations
    • Signals of signed and unsigned type will overflow silently
    • Sign extension may create differing results for signed and unsigned types

    Go to the next tutorial »

    Leave a Reply

    Your email address will not be published. Required fields are marked *

    This site uses Akismet to reduce spam. Learn how your comment data is processed.

    2 thoughts on “How to use Signed and Unsigned in VHDL

    1. I am confused by the article. To quote your text,

      “The unsigned 4-bit binary number “1000” is decimal 8, while the signed 4-bit number “1000” is decimal -4”

      Seems to me that “1000” in signed 2’s complement would be -8, not -4…right?

      Posted on August 24, 2018 at 10:05 pm
      1. You are correct!
        I changed the text to -8 now. Fortunately I said -8 in the video 🙂
        Thank you for pointing that out.

        Posted on August 24, 2018 at 10:22 pm
